Services

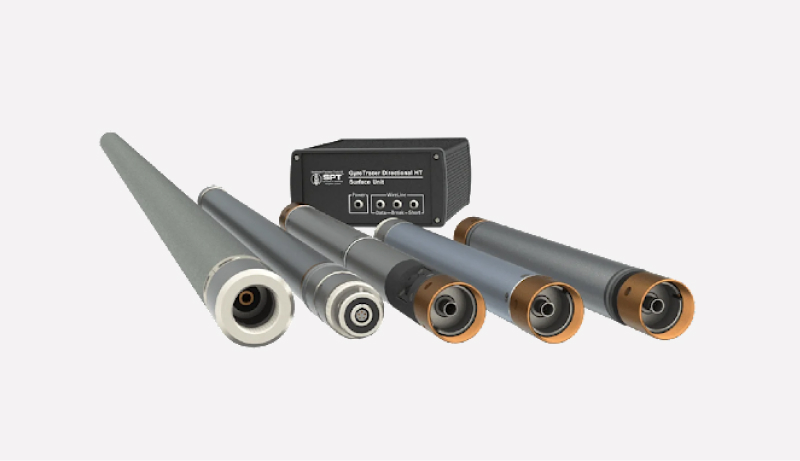

Gyro Surveying Services

Vaughn Energy,Nigeria Gyro survey service offers you the very best accuracy and reliability. At Vaughn Energy, we make use of a highly efficient and accurate downhole directional survey and orientation tool. Comprising of the very latest solid state technology, our system uses gyro compassing methods to get direction. Vaughn Energy Gyros are a North Seeking Gyro, all of its measurements are in reference to geographic north. Unlike other survey tools, our tools are not affected in any way by magnetic interference.

It can be run inside casing, tubing, drill pipe and magnetically disturbed ground. Our tools can be run in different forms of applications from shallow borehole to deep borehole surveying, single shot/multi shot etc. The Gyro package can be run real time on wireline (Realtime Gyro) and in memory mode (Memory Gyro) on slickline or even combined with a third-party tool to reduce the number of descents into a well. The Wireline mode is done from an Electric Line cable which transmits real time data to the computer at the surface. Mono or multiple conductor cable can be used. Memory mode is fast and cost efficient because it is powered by a battery supply.

Drilling Services

Vaughn Energy offers a complete range of drilling technology services and our drilling services includes:

Wireline Services

Vaughn Energy Services Limited performs wireline services to set flow control on various devices within an oil or gas well, as part of a clean-out process, or to place instruments that will measure temperature and/or pressure to get a clearer picture of the situation within the well. This is accomplished by running a single or multi-strand wire into the well. Maybe most importantly, our wireline services can easily be performed while your well is under pressure. Production continues unabated during the exercise, and no time is lost. The pressure control equipment used by Vaughn wireline services can withstand the harsh extremes of pressure up to 15,000 pounds per square inch and extremely high temperatures. It can also withstand the wide array of corrosive substances that inhabit an oil or gas well. The pressure control equipment used by Vaughn Energy Services comes in various sizes for various applications. Our smallest unit can be used in a borehole as small as an inch and a half in diameter, while our large units traverse holes as large as nine inches in diameter.

Cased Hole Wireline

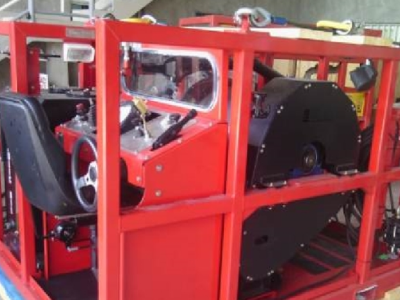

Slickline Services

With a comprehensive line of tools and equipment, our slickline and advanced slickline services help you maximize production with a low incremental investment. Beside been essential for running and shifting of completion plugs, using innovative technology, perforating, tubing punch and bridge plug setting are conducted on slickline which saves money for the client.

Slickline operations involve maintenance, such as the removal of wax, scale, sand and fill build-ups, terminating flow and setting hydraulic packers using sealing plugs, gauge cutting, setting or removing plugs, deploying or removing wireline, retrievable valves and memory logging of down-hole logs using Memory Production Logging Tools (MPLT) and down-hole vision (using run cameras). The use of Vaughn Energy slickline units provides you with a variety of well intervention services and measurements that are essential during the time a well is in production.

Vaughn Energy provides a complete range of slickline intervention services backed up by industry recognized training and quality programs to ensure the highest level of personnel competency. Slickline units and cables are available in a range of styles to meet our clients’ needs, including Zone II rated units.

Surface Well Testing

Vaughn Energy surface well testing defines the reservoir parameters which actually determines the optimal rate of production. Surface well testing is the only available technique today that assesses the true reservoir potential at full scale. It validates well performance during cleanup and commissioning and allows reservoir monitoring for better field management. With a wide variety of surface well testing equipment available for exploration through development and production campaigns, Vaughn Energy has the technology and the expertise to acquire accurate and justifiable surface well test measurements during each phase of the field development while meeting the HSE regulations in complex conditions and challenging environments.

Multiphase Well Testing and Monitoring

Our multiphase flowmeter (MPFM) products and services provide critical well diagnostic information without the complexity of conventional testing operations. With continuous measurements of a well’s individual phases without separation, our multiphase measurement capabilities offer many advantages:

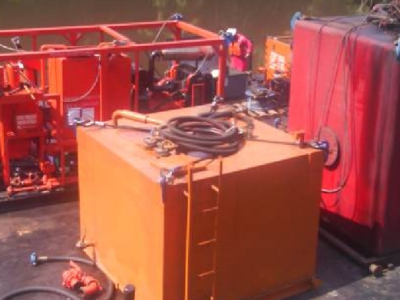

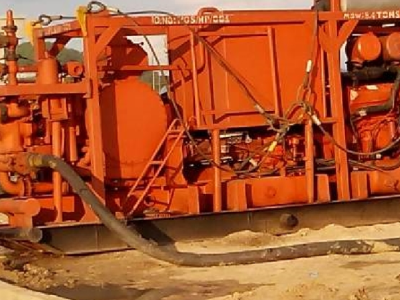

Coiled Tubing/Pumping Services For Pipelines & Oil/Gas Wells.

Vaughn Energy Services Limited is into pumping services and has a whole range of pumping and other equipment for various oilfield pumping services. Vaughn Energy Services Limited has experienced and well trained engineers, technicians and Pump operators to deliver superior service when it comes to oilfield pumping services.

Procurement Services

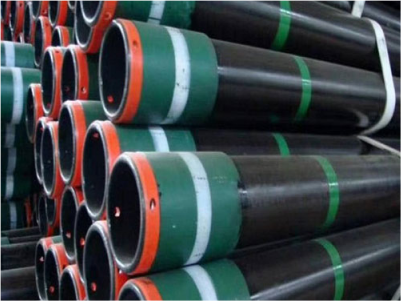

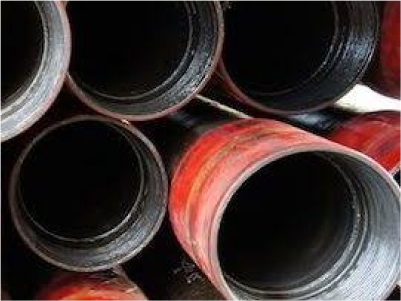

Another important aspect of our service line is the procurement and supply of equipment, machinery, spares, material and chemicals etc to the energy, service and allied sectors of the Nigerian economy. Vaughn sources products from local or international manufacturers or their appointed representatives. This has sustained our growing tradition of servicing every purchase order with very high quality and standard products to the utmost satisfaction of our highly valued clients. We have well trained team with deep experience and understanding of the local and international sourcing market and supply chain management. With track record of several successful project materials delivery for our clients. Vaughn is a leader in providing turnkey procurement solutions. We have selected suppliers and vendors who are passionate for excellence and primarily focus on quality , schedule and price. In summary, the procurement and supply department of Vaughn Energy Services Limited focuses on the following lines of product:
